ReSeal® Fittings for ClearGard® PVC Suction and Discharge Hose and ClearGard® PVC Tubing – Saint Gobain

Pricing and availability on request. Call (205) 661-0372 or send a quote request and we'll get back to you.

Features and Benefits

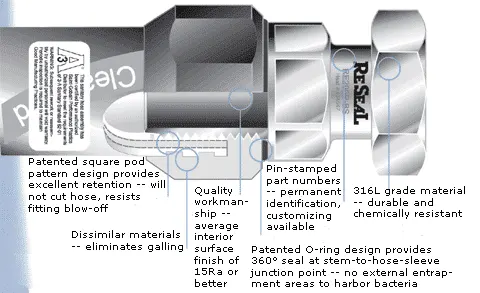

Totally Reusable	Made of grade 316L stainless steel with an average interior surface finish of 15Ra or better Can be dismounted and reattached to a new length of hose by a factory-authorized fabricating distributor Smaller sizes can be field fabricated Significant savings compared to the cost of a completely new assembly (up to 90%) Available in a wide variety of sizes and end styles
Sanitary	Compliance with the highest 3-A 62-01 sanitary standard Full flow compression seal and smooth bore design prevent bacteria build-up Patented O-ring design provides 360° seal at stem-to-hose-sleeve junction point No external entrapment area to harbor bacteria
Cleanable	Suitable for Clean-In-Place (CIP) procedures at low temperatures No disassembly for cleaning like clamped-in fittings
Safe	Superior coupling retention No straps or bands to injure workers
Inspectable	No need to cut up hose assembly Quick disassembly makes inspections easy

ReSeal® fittings for ClearGard® PVC suction/discharge hose and tubing are available in sizes 1″ up to 4″ in five standard end styles (including a 316L stainless steel stem option)
Stems are manufactured from 304L stainless steel with an average interior surface finish exceeding 25Ra (CSC, CSW only)
Stems are manufactured from grade 316L stainless steel with an average interior surface finish of 15Ra or better (CBT, CCT, CSS only)
Hose sleeves are available in either high impact polymer or stainless steel (stainless steel for CBT, CCT, CSS only)
